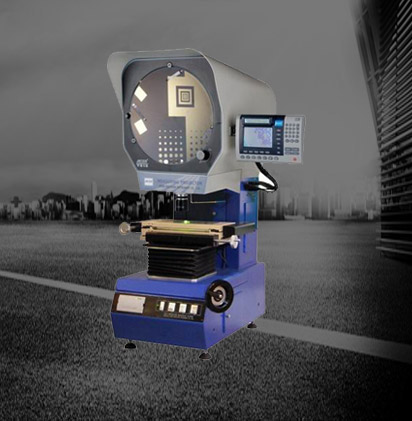

VB16 Optical Vertical Profile Projector

VB16 Optical Vertical Profile Projector

400mm diameter screen with digital protractor;

Working stage lifting system to focus;

200x100mm precision movement work-stage;

Halogen profile and surface illumination adjustable;

Geometric multifunction data processing system upgrade to DRO DP300;

Built-in Mini-printer;

Available 10x,20x,50x objective, rotary table, foot-switch, etc.


FEATURES

Reverse Image:VB16-2010

Obverse Image:VB16-2010Z

Metal Stage Size:350 x 170mm

Glass Stage Size:246 x 120mm

Stage Travel: X and Y-axis:200 x 100mm

Stage Travel: Z-axis:100mm (for focusing)

Accuracy:≤3+L/200(um)

Resolution of X and Y-scale 0.0005 mm

Screen Diameter :Ø425mm,Effective Range ≥ Ø400(with “* ” Reticle)

Diameter :Ø425mm,Effective Range ≥ Ø400(with “* ” Reticle)

Digital Readout DP 300 Multifunctional Data Processing System

Illumination :24v/150w halogen lamp (adjustable)

Cooling System Forced Cooling (3-axis-fans)

Power Supply AC110V/60Hz; 220V/50Hz, 650W

Dimension (D×W×H) 760 x 530 x 1100mm

Packing Dimension (L×W×H) 1540 x 790 x 1500mm

Gross/Net Weight 260/220Kg


PRODUCT ADVANTAGES VB16 Optical Vertical Profile Projector

1.   Powerful


2.   stable performance


3.   high precision


4.   simple operation


5.   easy maintenance


6.   Simple structure, strong bearing capacity, the work piece placed open space, handling convenience.


Product Applications

The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others。


Packing ,transportation and after sales service

1.   One years warranty for the mother board.

2.   Life-long maintenance service for the product.

Packing : wooden case.

Delivery time : 2 working days after receive the payment.
