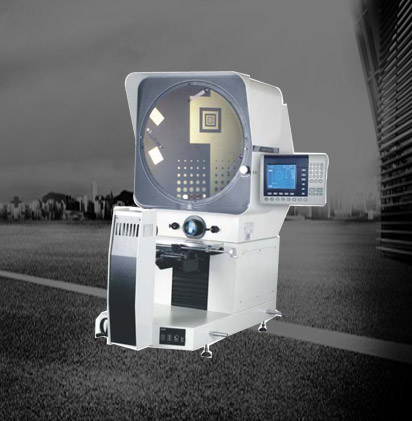

HB24 Horizontal Profile Projector

Model number: HB24

600mm diameter screen with digital protractor;

300x150mm precision movement work-stage, 300x200mm optional;

Work-stage sway range between 15°;

Halogen profile and fiber surface illumination adjustable;

Geometric multifunction data processing system DRO DP300;

Built-in Mini-printer;

Available 10x,20x objective rotary table, working cupboard and foot-switch, etc.

FEATURES

Reverse Image: HB24

Obverse Image: HB24Z

Metal Stage Size: 455 x 126mm

Stage Travel: X and Y-axis: 300 x 150mm

Stage Travel:Y-axis : 75mm (for focusing)

X and Z Linear Resolution : 0.0005 mm

Sway Range: ±15°

Accuracy: ≤3+L/200(um)

Screen: Diameter :Ø625mm,Effective Range ≥ Ø600(with “* ” Reticle)

Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°

Digital Readout: DP 300 (561-301) Multifunctional Data Processing System

Illumination: Contour illumination:24v/150w (halogen Lamp ) Surface illumination:21v/150w (Optical Fiber)

Power Supply: AC110V/60Hz; 220V/50Hz, 650W

Dimension (D×W×H): 1620 x750 x 1400mm

Packing Dimension (L×W×H) : 1790 x 890 x 1520mm

1300 x 880 x 1250mm : 300/250Kg

PRODUCT ADVANTAGES HB24 Horizontal Profile Projector

1. it can effectively complement the measurement and observation.

2. stable performance

3. high precision

4. simple operation

5. easy maintenance

6. Simple structure, strong bearing capacity, the workpiece placed open space, handling convenience.

Product Applications

The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others。

Packing ,transportation and after sales service

1. One years warranty for the mother board.

2. Life-long maintenance service for the product.

Packing : wooden case.

Delivery time : 2 working days after receive the payment.
