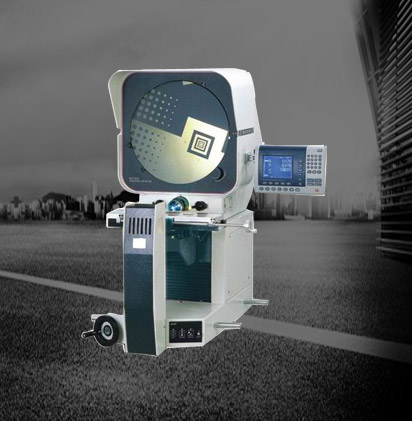

HB16 Horizontal Profile Projector

HB16 Horizontal Profile Projector

Model number: HB16

400mm diameter screen with digital protractor;

300x150mm precision movement work-stage, 300x200mm optional;

Work-stage sway range between  15°;

Halogen profile and fiber surface illumination adjustable;

Geometric multifunction data processing system DRO DP300;

Built-in Mini-printer;

Available 10x,20x,50x, objective rotary table and foot-switch, etc.


FEATURES

Reverse Image: HB16

Obverse Image: HB16Z

Metal Stage Size: 408 x 126mm

Stage Travel: X and Y-axis: 300 x 150mm

Stage Travel:Y-axis : 75mm (for focusing)

X and Z Linear Resolution : 0.0005 mm

Sway Range: ±15°

Accuracy: ≤3+L/200(um)

Screen: Diameter :Ø425mm,Effective Range ≥ Ø400(with “* ” Reticle)

Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°

Digital Readout: DP 300 (561-301) Multifunctional Data Processing System

Illumination: Contour illumination:24v/150w (halogen Lamp ) Surface illumination:21v/150w (Optical Fiber)

Power Supply: AC110V/60Hz; 220V/50Hz, 650W

Dimension (D×W×H): 1160 x 600 x 960mm

Packing Dimension (L×W×H) : 1300 x 880 x 1250mm

1300 x 880 x 1250mm : 200/160Kg


PRODUCT ADVANTAGES HB16 Horizontal Profile Projector

1.   it can effectively complement the measurement and observation.


2.   stable performance


3.   high precision


4.   simple operation


5.   easy maintenance


6.   Simple structure, strong bearing capacity, the workpiece placed open space, handling convenience.


Product Applications

The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others。


Packing ,transportation and after sales service

1.   One years warranty for the mother board.

2.   Life-long maintenance service for the product.

Packing : wooden case.

Delivery time : 2 working days after receive the payment.
