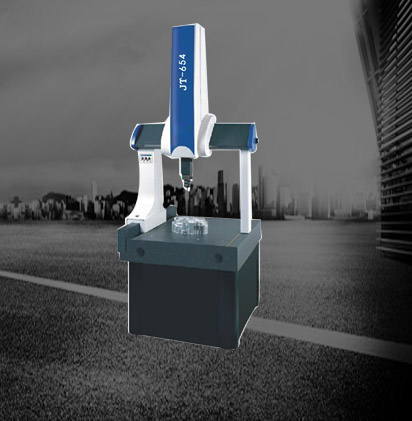

JT 654 Coordinate measuring machiner

JT 654 Coordinate measuring machiner

Brand Name: JATEN

Model Number: JT 654, JT 654

Optical system: Automatic zoom lens

Power: Electronic 220V/110V 50HZ

Resolution: 0.5

Measuring body size: 950x1050x2000mm

Measuring Range: X500*Y600*Z400mm

operating platform max load weight: 300kg

xy axis Accuracy(Eum,L:mm): 3.5+L/250 UM ISO 10360-2 maximum permissible error

Grating ruler: America brand High precision GSI. 0.5um


1.   Double closed-loop motion control, embedded modules developed to control motor with precise positioning performance.

2.   Surface light formed by 24 groups independent light source , each group are constant current source driver and 200-step continuous variable.

3.   Optical measurement system can measure point, line, circle, arc and oval, rectangular with the multi-point positioning function,combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure.

4.   High Accuracy CNC optical measurement machine has various functions of data processing, display, input and output, Measurement data output Word,Excel and AutoCAD directly to conduct statistical analysis,particularly, the work piece straightening function is very useful.

5.   Macros will be faster and more convenient to measure the same spare parts, for the improvement of measurement efficiency.

PRODUCT ADVANTAGES JT 654 Coordinate measuring machiner

1.   Powerful

2.   stable performance

3.   high precision

4.   simple operation

5.   easy maintenance

6.   Simple structure, strong bearing capacity, the workpiece placed open space, handling convenience.

Product Applications

The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others。

Packing ,transportation and after sales service

1.   One years warranty for the mother board.

2.   Life-long maintenance service for the product.

Packing : wooden case.

Delivery time : 2 working days after receive the payment.
