VMS5030

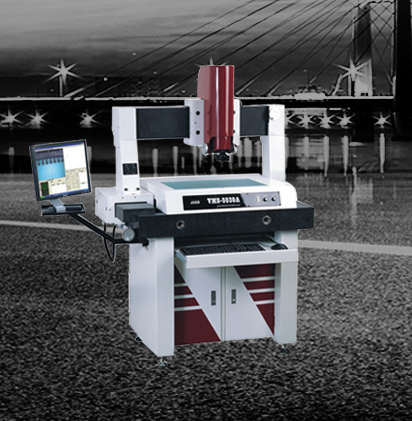

Model number: VMS-5030

High-power Non-contact Optical Measuring Instrument with Large Working Travel

Mainly applicable for the measurement of large PCB, LCD and other big Parts.

Stable Granite Base

Imported V-shape Guide

Precised Metal and Glass Worktable

Adjustable USB 4-division Ring LED illumination

Advanced Navitar 0.7~4.5X Zoom Lens

Wonderful Sony 1/2’’ Color CCD Camera

Powerful Measuring Software Quick Measuring Version

Function of Data Processing,Displaying,Input,Output,

With RS-232 Interface

FEATURES

Metal Table Size(mm): 760X640

Glass Table Size(mm): 550X350

X,Y-axis Travel(mm): 500X300

Z-axis Travel(mm): 200

Resolution(mm)：0.0005

X,Y-axis Accuracy(um)：≤3+L/200

Measuring Software : Quick Measuring

Net Weight(kg): 100

Measuring Software: Quick Measuring

Dimensios(mm)：926X612X1082

Video System: Sony 1/2’’ Color CCD Camera ,Navitar 0.7~4.5 Zoom Lens,Video Total Magnification:30X~190X,Object View:10.6~1.6mmAdjustable USB 4-division Ring LED illumination

Power：180V~260V(AC),50HZ

PRODUCT ADVANTAGES VMS5030

1. it can effectively complement the measurement and observation.

2. stable performance

3. high precision

4. simple operation

5. easy maintenance

6. Simple structure, strong bearing capacity, the workpiece placed open space, handling convenience.

Product Applications

The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others。

Packing ,transportation and after sales service

1. One years warranty for the mother board.

2. Life-long maintenance service for the product.

Packing : wooden case.

Delivery time : 2 working days after receive the payment.
