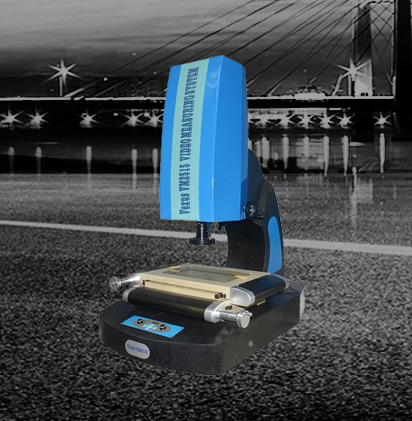

Model number: HB24

Be Applied to Mechanical ,,Electronic ,Plastic Fields etc.

Fashionable Shape With Stable Ark Pillar Granite Design.

Adjustable 4-division LED Illuminator controled by panel or software

Obviously assistant laser position system

Powerful Measuring Software Quick Measuring Version

Function of Data Processing,Displaying,Input,Output,

With RS-232 Interface


Reverse Image: HB24

Obverse Image: HB24Z

Metal Table Size(mm): 408X308

Glass Table Size(mm): 306X196

X,Y-axis Travel(mm):250X150

Z-axis Travel(mm) : 250

Resolution(mm) : 0.0005 mm

X,Y-axis Accuracy(um): ≤3+L/200

Measuring Software: Quick Measuring

Net Weight(kg):320


Video System: High Resolution Color CCD Camera,0.7~4.5 Zoom Lens,Video Total Magnification:30X~230X(with 2X Additional lens,to Total Magnification440X),Object View:7~1.1mm

4-division LED adjustable Illuminator



1.   it can effectively complement the measurement and observation.

2.   stable performance

3.   high precision

4.   simple operation

5.   easy maintenance

6.   Simple structure, strong bearing capacity, the workpiece placed open space, handling convenience.

Product Applications

The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others。

Packing ,transportation and after sales service

1.   One years warranty for the mother board.

2.   Life-long maintenance service for the product.

Packing : wooden case.

Delivery time : 2 working days after receive the payment.
